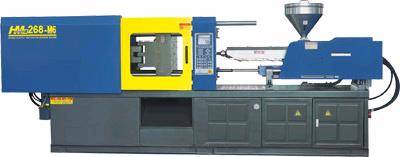

HMD 268 M6 SERVO


HMD 286 SERVO
IMM 01 - 268 TON
MACHINE SPECIFICATION
INJECTION CAPACITY MAX 595 cc/s
CLAMPING FORCE 268 Ton
MAX DAY LIGHT 1090 mm
MIN MOULD HEIGHT 195 mm
MAX MOULD HEIGHT 600 mm
TIE BARS DISTANCE (H X W) 560 X 560 mm
EJECTION STROKE 160 mm
SCREW DIAMETER 53 mm
LOCATING RING (OUTER DIA) 120 mm
CONTROL TYPE SERVO

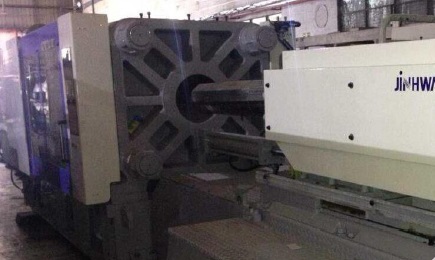

JINHWA 200 SERVO


JINHWA 200
IMM 02 - 200 TON
MACHINE SPECIFICATION
INJECTION CAPACITY MAX 393 cc/s
CLAMPING FORCE 200 Ton
MAX DAY LIGHT 1020 mm
MIN MOULD HEIGHT 220 mm
MAX MOULD HEIGHT 580 mm
TIE BARS DISTANCE (H X W) 510 X 410 mm
EJECTION STROKE 130 mm
SCREW DIAMETER 55 mm
LOCATING RING (OUTER DIA) 100 mm
CONTROL TYPE SERVO


HMD 268 M6 SERVO


HMD 268 M6 SERVO
IMM 03 - 268 TON
MACHINE SPECIFICATION
INJECTION CAPACITY MAX 595 cc/s
CLAMPING FORCE 268 Ton
MAX DAY LIGHT 1090 mm
MIN MOULD HEIGHT 195 mm
MAX MOULD HEIGHT 600 mm
TIE BARS DISTANCE (H X W) 560 X 560 mm
EJECTION STROKE 160 mm
SCREW DIAMETER 53 mm
LOCATING RING (OUTER DIA) 120 mm
CONTROL TYPE SERVO


TOSHIBA TS180 SERVO


TOSHIBA TS180 SERVO
IMM 04 - TS180 TON
MACHINE SPECIFICATION
INJECTION CAPACITY MAX 178 cc/s
CLAMPING FORCE 180 Ton
MAX DAY LIGHT 1000 mm
MIN MOULD HEIGHT 200 mm
MAX MOULD HEIGHT 550 mm
TIE BARS DISTANCE (H X W) 500 X 500 mm
EJECTION STROKE 160 mm
SCREW DIAMETER 36 mm
LOCATING RING (OUTER DIA) 120 mm
CONTROL TYPE SERVO
